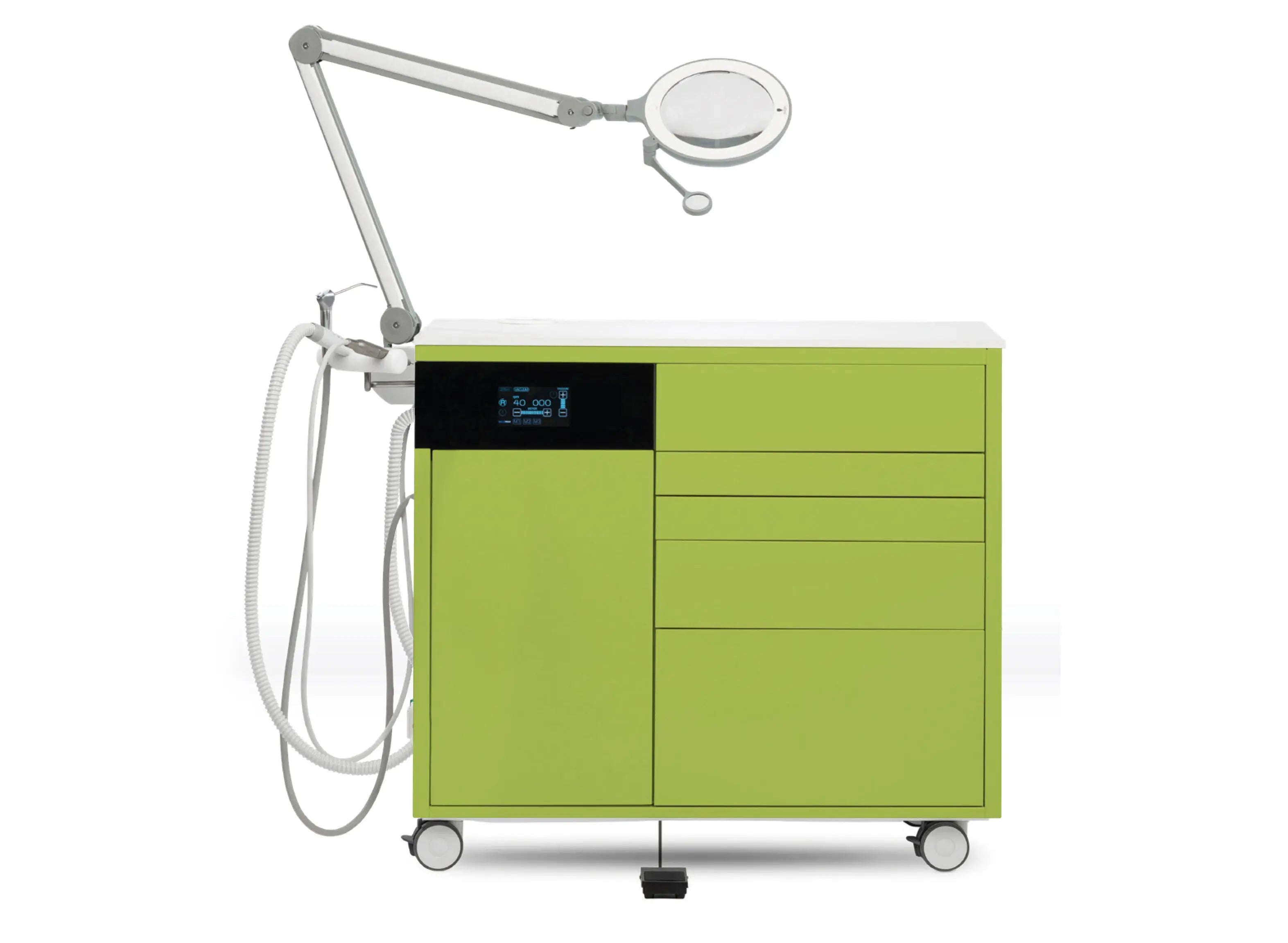

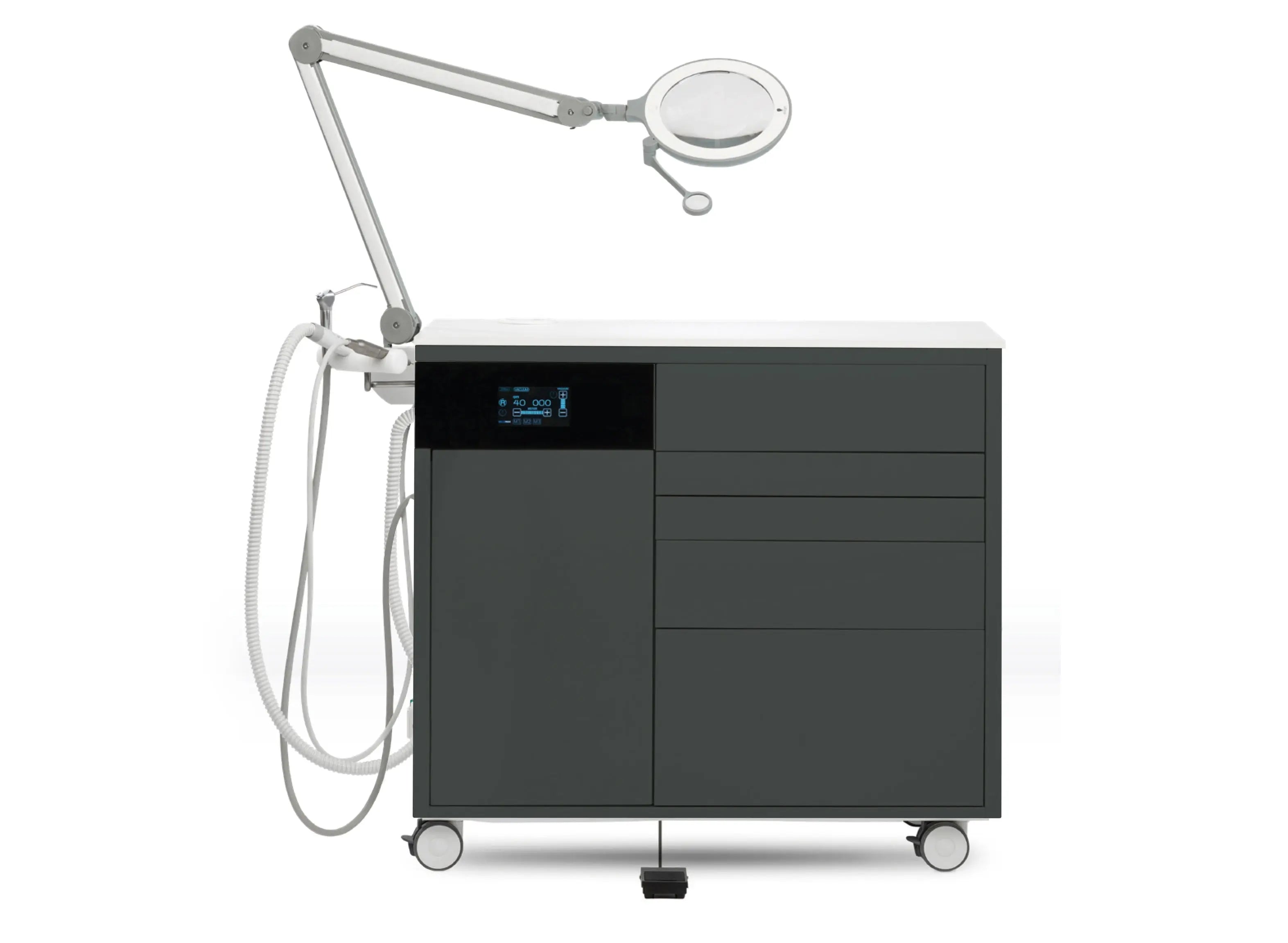

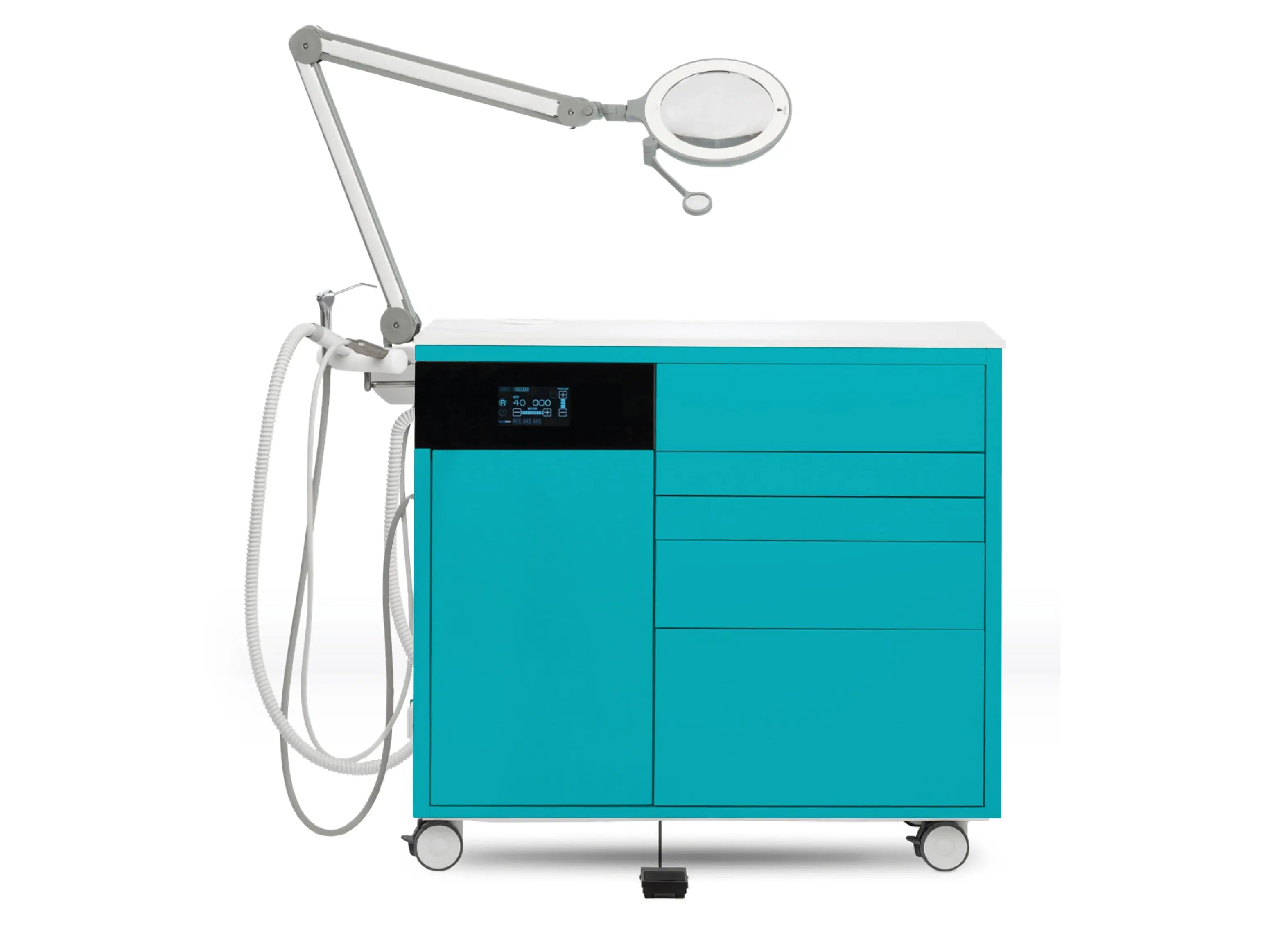

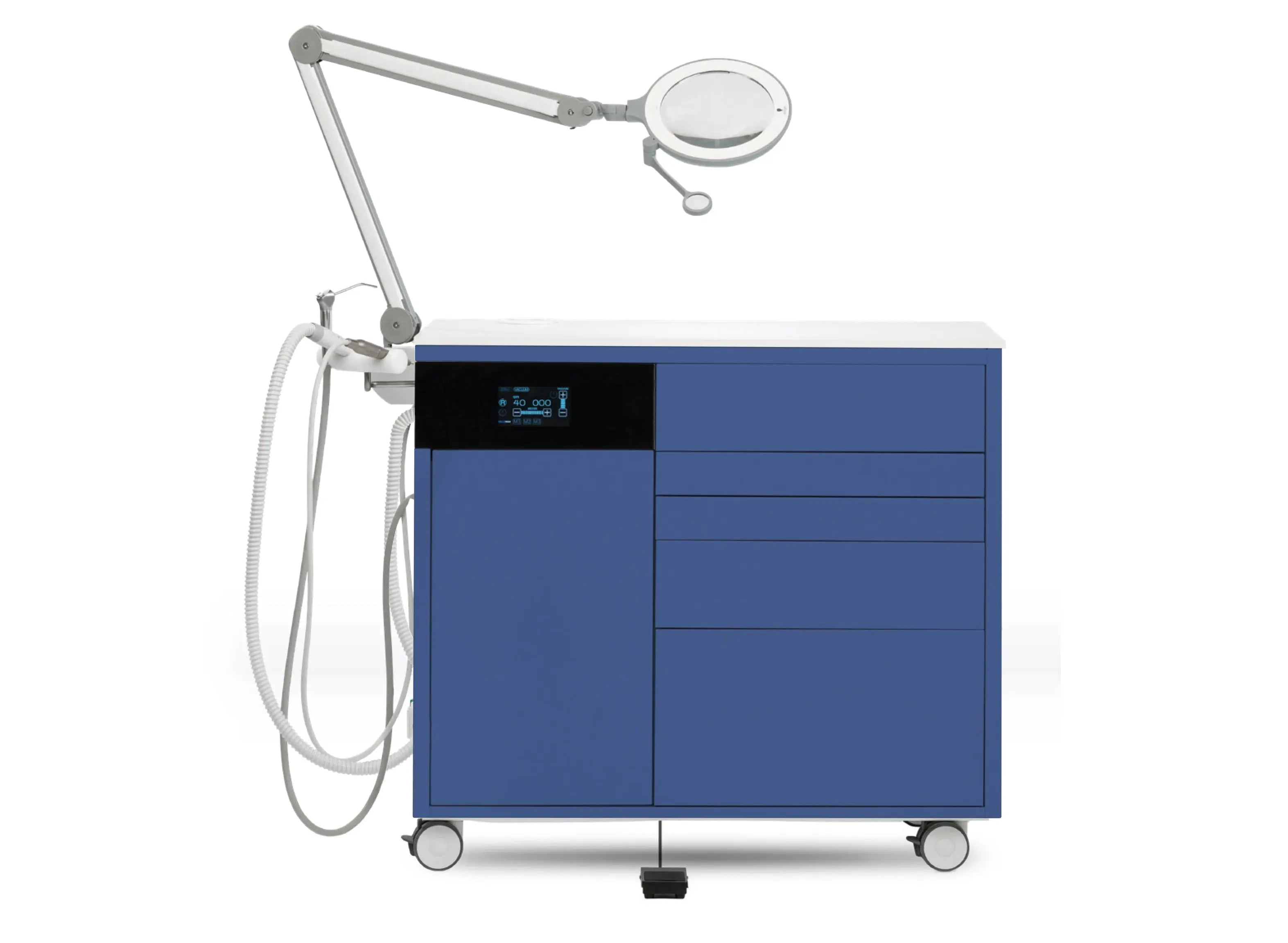

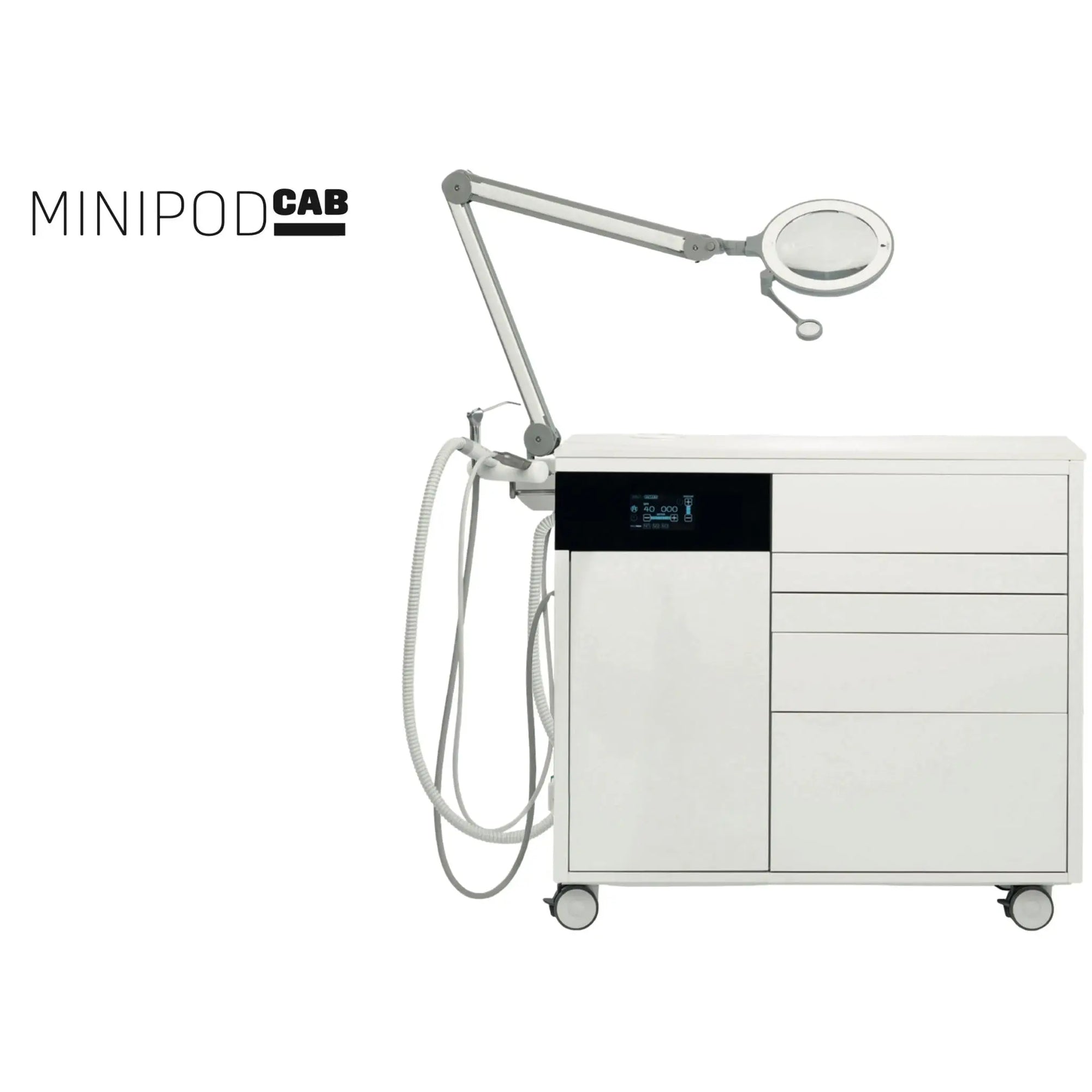

MINIPOD CAB spray, air and suction treatment unit - NWT

The MinipodCab has been optimized so that the maximum number of functions are available even without complex installation.

Dimensions: 815 x 885 x 455 mm
85 kg
Suction hose on the side of the furniture

We tell you more about NWT podiatry units and handpieces in our blog article:

VIEW ARTICLE

Features :

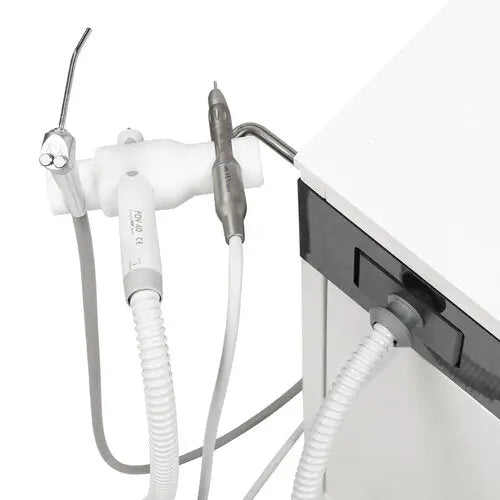

- 3-function SYRINGE (air, water, spray) AND PDV40 ECO OR MORE suction handpiece INCLUDE: easy and quick to clean, ergonomic handles, automatic clamping system, 1:1 transmission, max. speed 40,000 rpm, quiet and powerful brushless micromotor, milling cutter (Ø 2.35)
+ SPRAY handpiece OF YOUR CHOICE
All these instruments are based on dental technology.

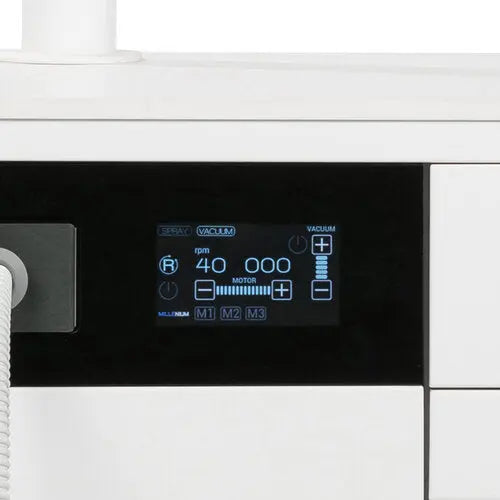

- COLOR TOUCH SCREEN
With its large color touch screen, the MinipodCab is easy to use and easy to clean.

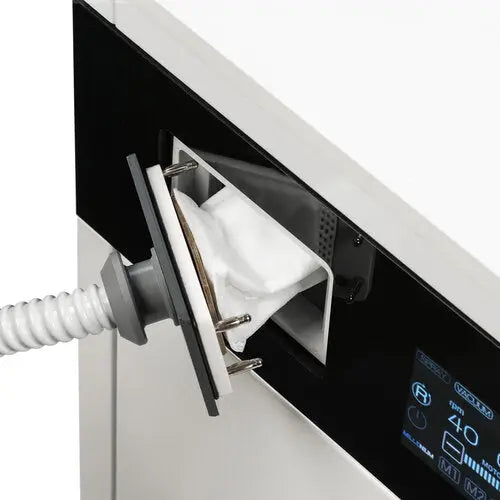

VACUUM BAG
The dust bag is easily accessible and interchangeable on the front.

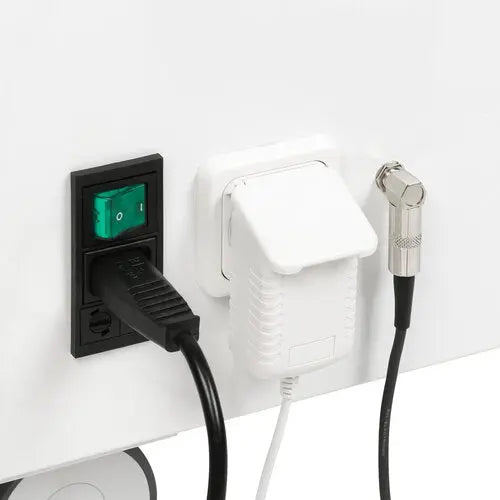

- 230 VOLTS SOCKET
An integrated 230 volt socket allows you to connect an external device such as a magnifying glass.

- SILENT COMPRESSOR AND EXTRACTION MOTOR

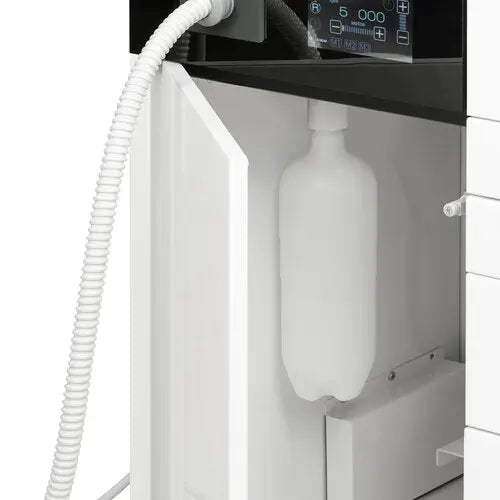

The cabinet has a quiet compressor and a quiet suction motor for the handpieces and the 3-function syringe. There is an easily accessible 1 liter water tank in the cupboard. You only need one socket to work with the most modern and innovative technology.

- PEDAL
Foot pedal for speed control so your hands are free for treatment.

- QUALITY METAL FURNITURE

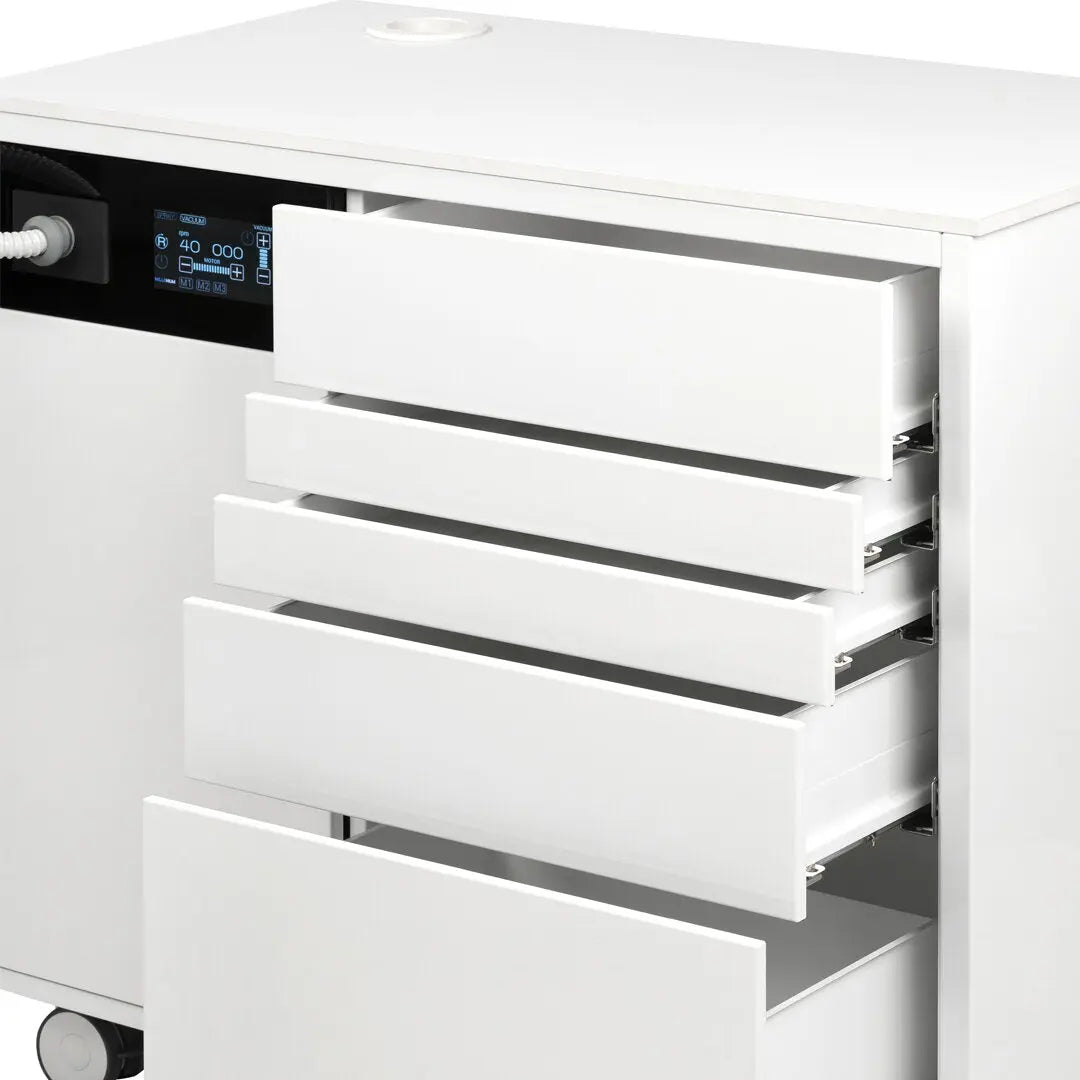

The high-quality furniture is made entirely of metal, powder-coated and resistant to disinfectants and cleaning products. The elegant design with the smooth surface is easy to clean. The cabinet has 5 drawers with push/pull opening mechanism.

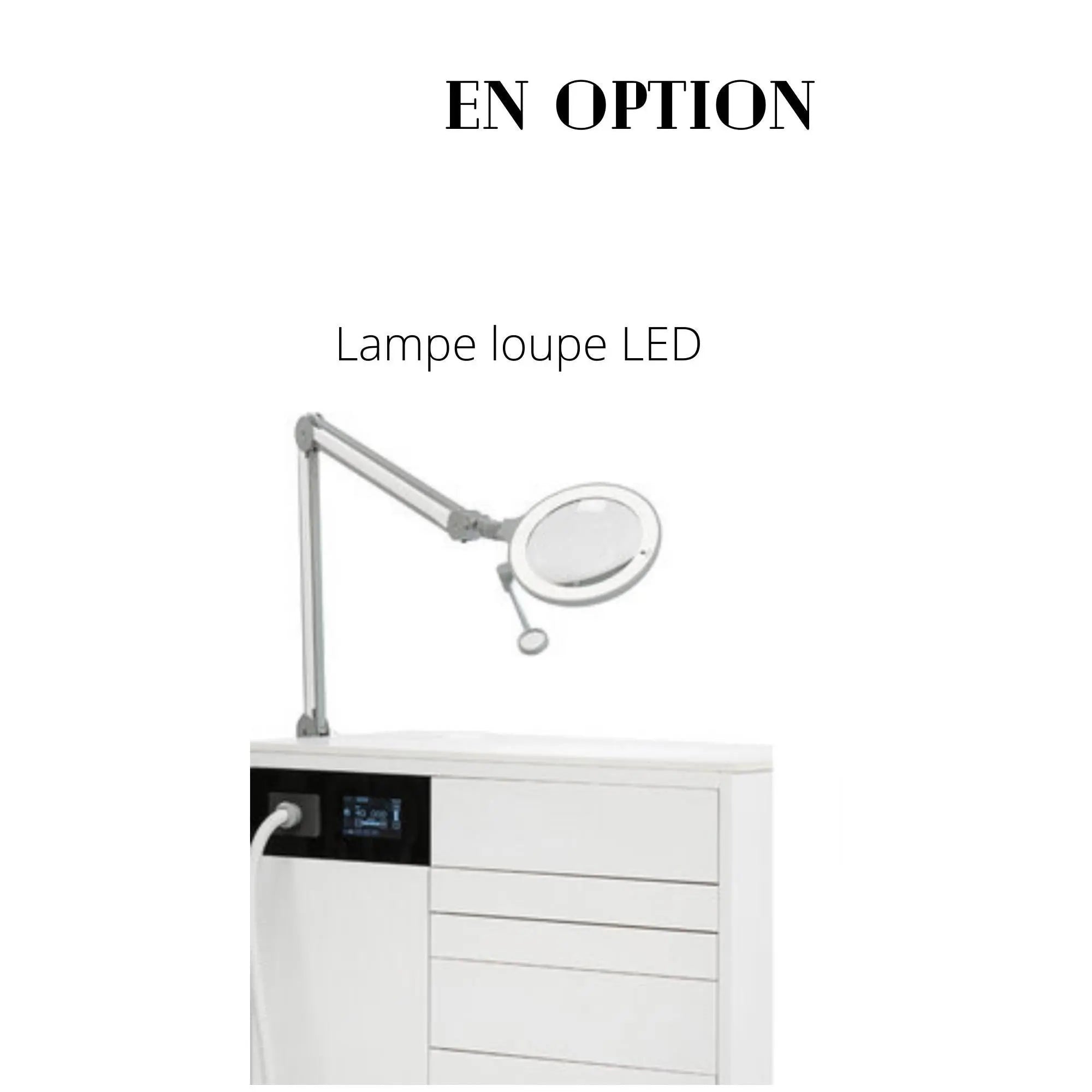

- SOLD WITHOUT LAMP: lamp to add as an accessory

Optional: STANDARD TURBINE A014SKL with AC200 LED LIGHT CONNECTION
Power (W): 25
Rotation (rpm): 330,000~390,000
Head size: ø 11.2 - 13.1 mm
Water spray: Quattro Spray
Body material: Stainless steel
Body covering: DualCoat
Weight (g): 56
Ball bearing: Ceramic
2 years warranty

The different handpieces available:

- SPRAY handpiece:

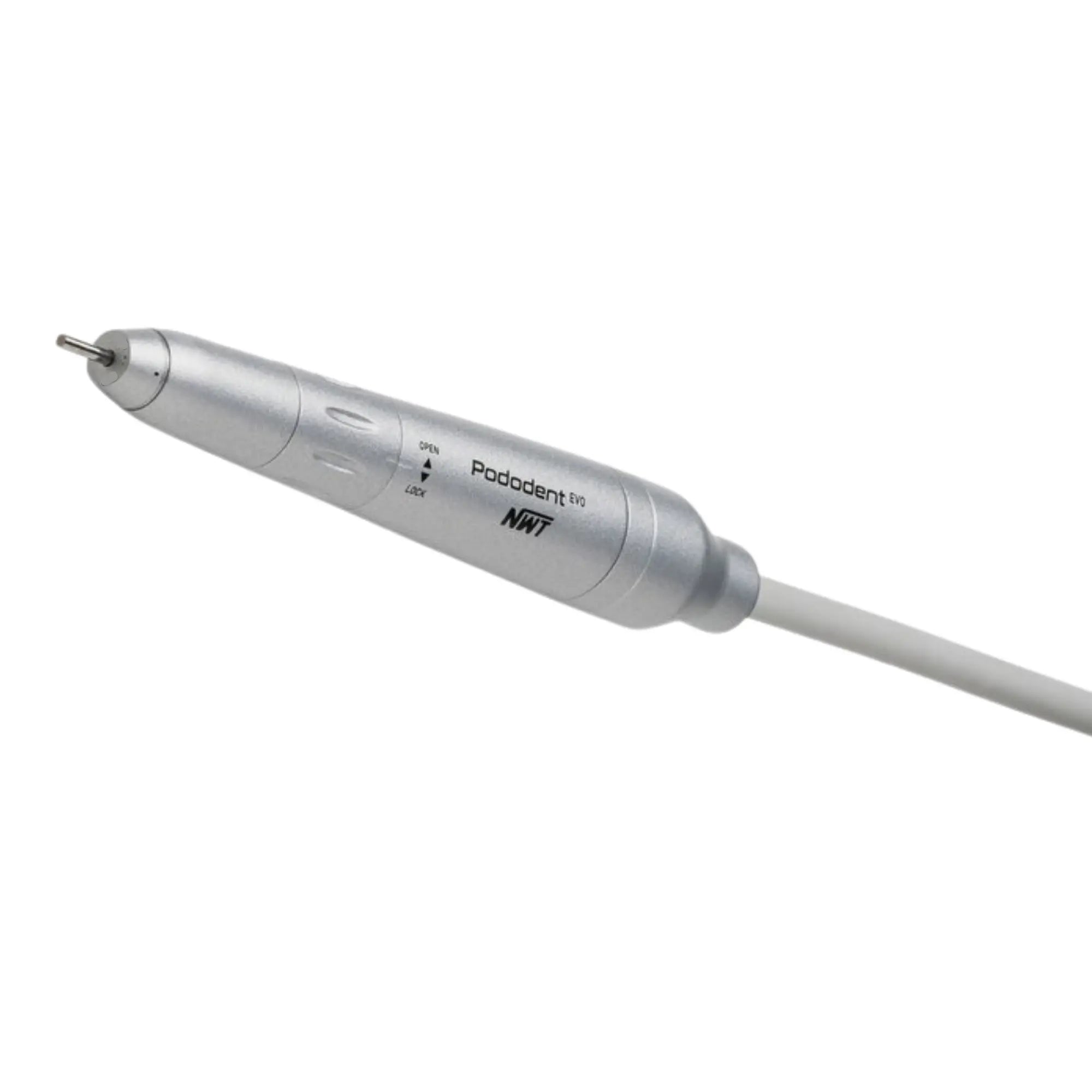

• Pododent EVO + PDV 40 EVO : Non-autoclavable handpiece, without LED

- Equipped with a powerful, quiet and brushless micromotor.
- Its clamping system simplifies daily work
- Low vibrations, regular rotation of the integrated clamping system.
- Strong and stable torque across the entire speed range.
- Ergonomic design of the handpiece for greater precision.
- Lightweight and compact handpiece reduces hand fatigue and improves balance.
- Hermetic micromotors with low vibration and noise levels.
- Increased clamping force of approximately 30% allows a greater choice of cutters.
- Unique mechanics for longer life
- Motor speeds from 4,000 to 40,000 rpm with a powerful torque of 3.4 Ncm

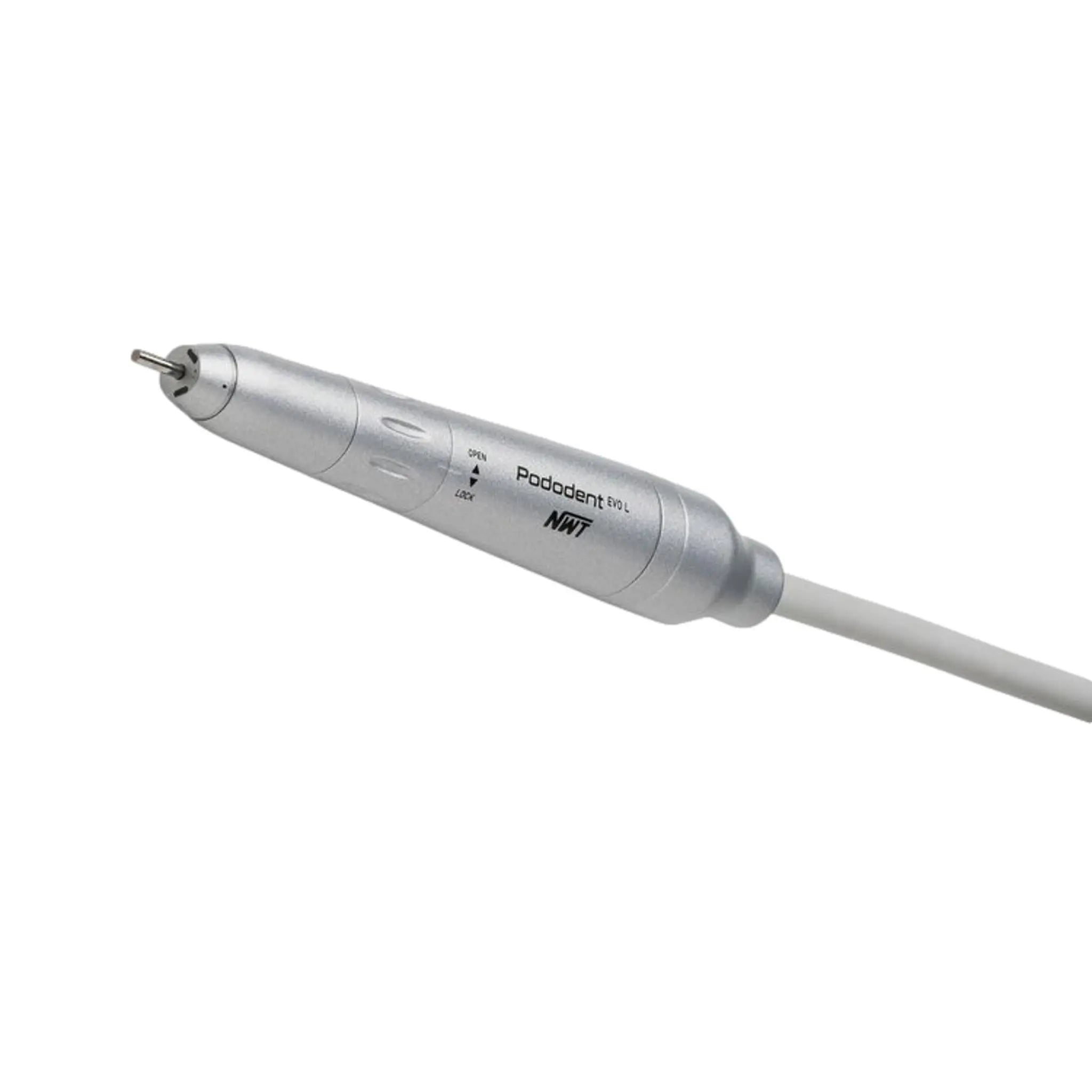

• Pododent EVO L + PDV 40 EVO : Non-autoclavable handpiece, LED

The all-new Pododent EVO L handpiece features two fiber optic rods that transmit LED light and illuminate the treatment area with daylight-like light.

- Equipped with a powerful, quiet and brushless micromotor.
- Its clamping system simplifies daily work
- Low vibrations, regular rotation of the integrated clamping system.
- Strong and stable torque across the entire speed range.
- Ergonomic design of the handpiece for greater precision.
- Lightweight and compact handpiece reduces hand fatigue and improves balance.
- Hermetic micromotors with low vibration and noise levels.
- Increased clamping force of approximately 30% allows a greater choice of cutters.
- Unique mechanics for longer life
- Motor speeds from 4,000 to 40,000 rpm with a powerful torque of 3.4 Ncm
- 32,000 LUX LED lighting, dual fiber optic LEDs to avoid shadows, natural daylight for better view (only applies to spray handpiece).

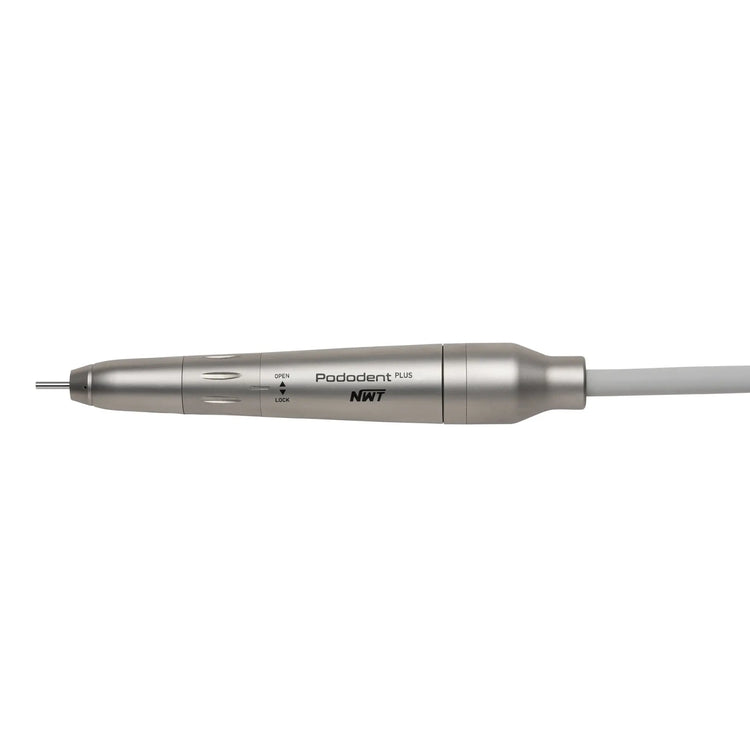

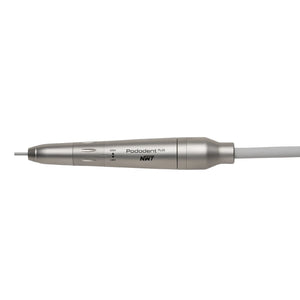

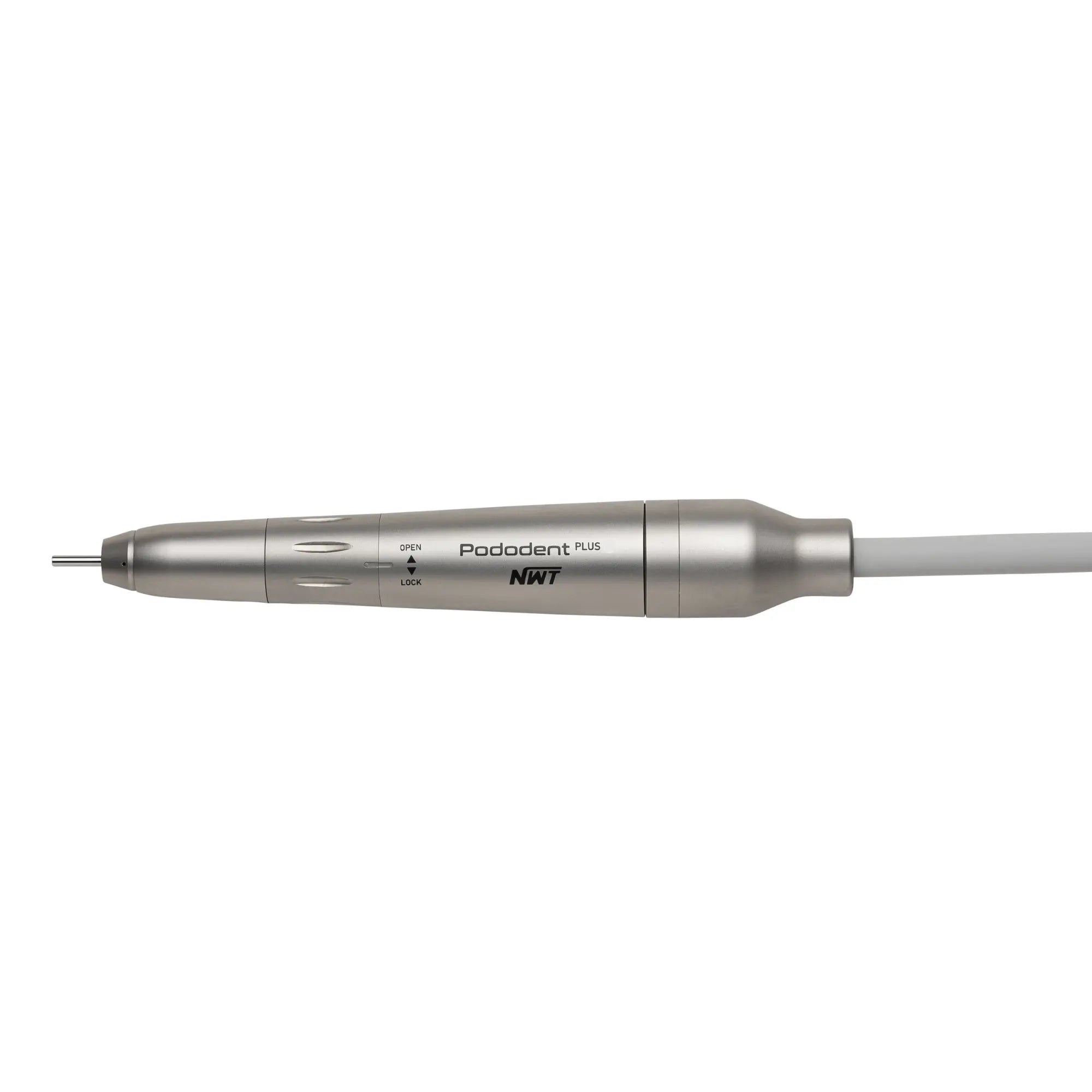

• Pododent PLUS + PDV 40 PLUS: Autoclavable handpiece, without LED

Using sophisticated, patented technology, NWT handpieces can be completely detached from the motor with a simple pull.
This new technology finally makes it possible to clean, disinfect and autoclave the handpiece optimally, inside and out, for greater safety for you and your clients.

- Removable handpiece for optimal cleaning, disinfection, sterilization processes and maintenance.
- Low vibrations, regular rotation of the integrated clamping system.
- Strong and stable torque across the entire speed range.
- Ergonomic design of the handpiece for greater precision.
- Lightweight and compact handpiece reduces hand fatigue and improves balance.
- Hermetic micromotors with low vibration and noise levels.
- Increased clamping force of approximately 30% allows a greater choice of cutters.
- Unique mechanics for longer life
- Motor speeds from 4,000 to 40,000 rpm with a powerful torque of 3.4 Ncm

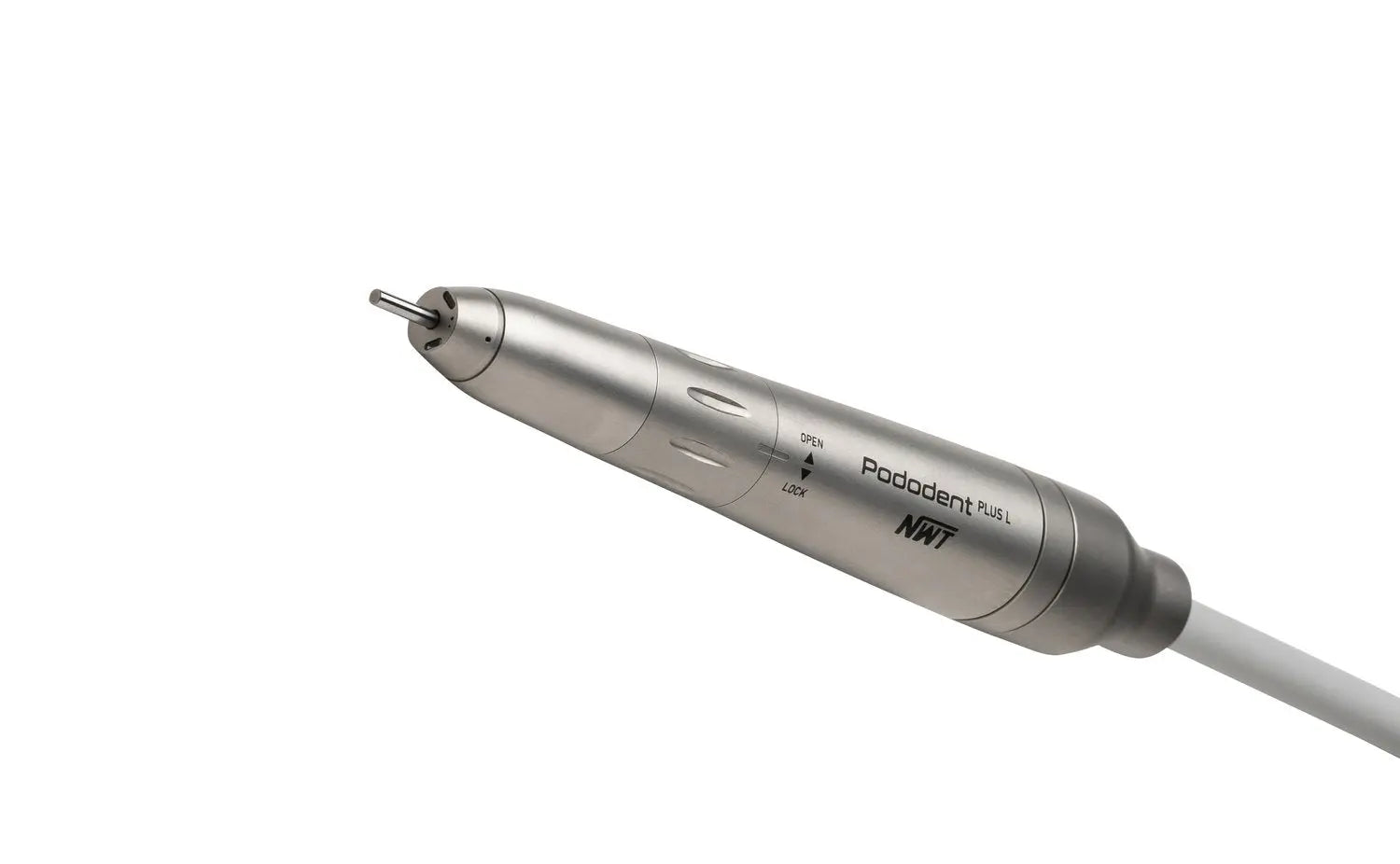

• Pododent PLUS L + PDV 40 PLUS : Autoclavable handpiece, LED

??Thanks to sophisticated, patented technology, NWT handpieces can be completely detached from the motor with a simple pull.

This new technology finally makes it possible to clean, disinfect and autoclave the handpiece optimally, inside and out, for greater safety for you and your clients.

- Removable handpiece for optimal cleaning, disinfection, sterilization processes and maintenance.
- Low vibrations, regular rotation of the integrated clamping system.
- Strong and stable torque across the entire speed range.
- Ergonomic design of the handpiece for greater precision.
- Lightweight and compact handpiece reduces hand fatigue and improves balance.
- Hermetic micromotors with low vibration and noise levels.
- Increased clamping force of approximately 30% allows a greater choice of cutters.
- Unique mechanics for longer life
- Motor speeds from 4,000 to 40,000 rpm with a powerful torque of 3.4 Ncm
- 32,000 LUX LED lighting (optional), dual fiber optic LEDs to avoid shadows, natural daylight for better view (only applies to spray handpiece).

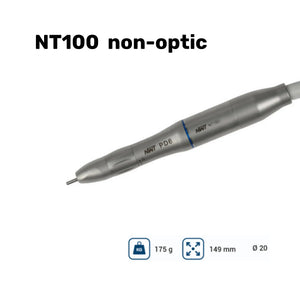

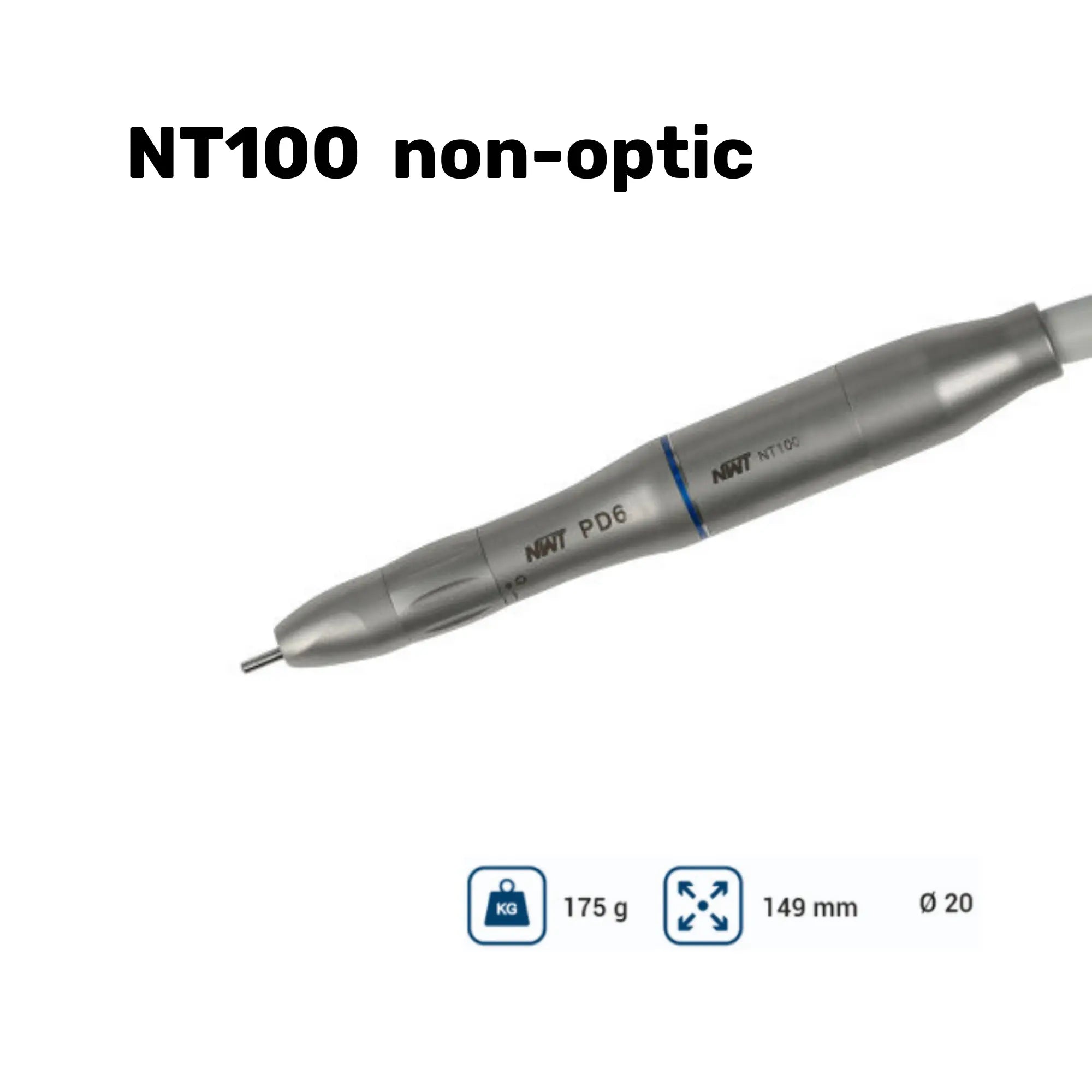

• NT100 non- optic + PDV 40 PLUS

- Engine speeds from 4,000 to 40,000 rpm with a powerful torque of 3.4 Ncm
- Autoclavable: Removable handpiece for optimal cleaning, disinfection, sterilization processes and maintenance
- Clamping force increased by approx. 30% allows a wider range of cutters
- 175g
- Size 149mm
- Uniform, vibration-free rotation of the integrated clamping system
- Powerful and stable torque across the entire speed range
- Ergonomic handpiece design for precision
- Lightweight, compact handpiece reduces hand fatigue and improves balance
- Hermetically shielded micromotors with low vibration and low noise
- Unique mechanism for longer life

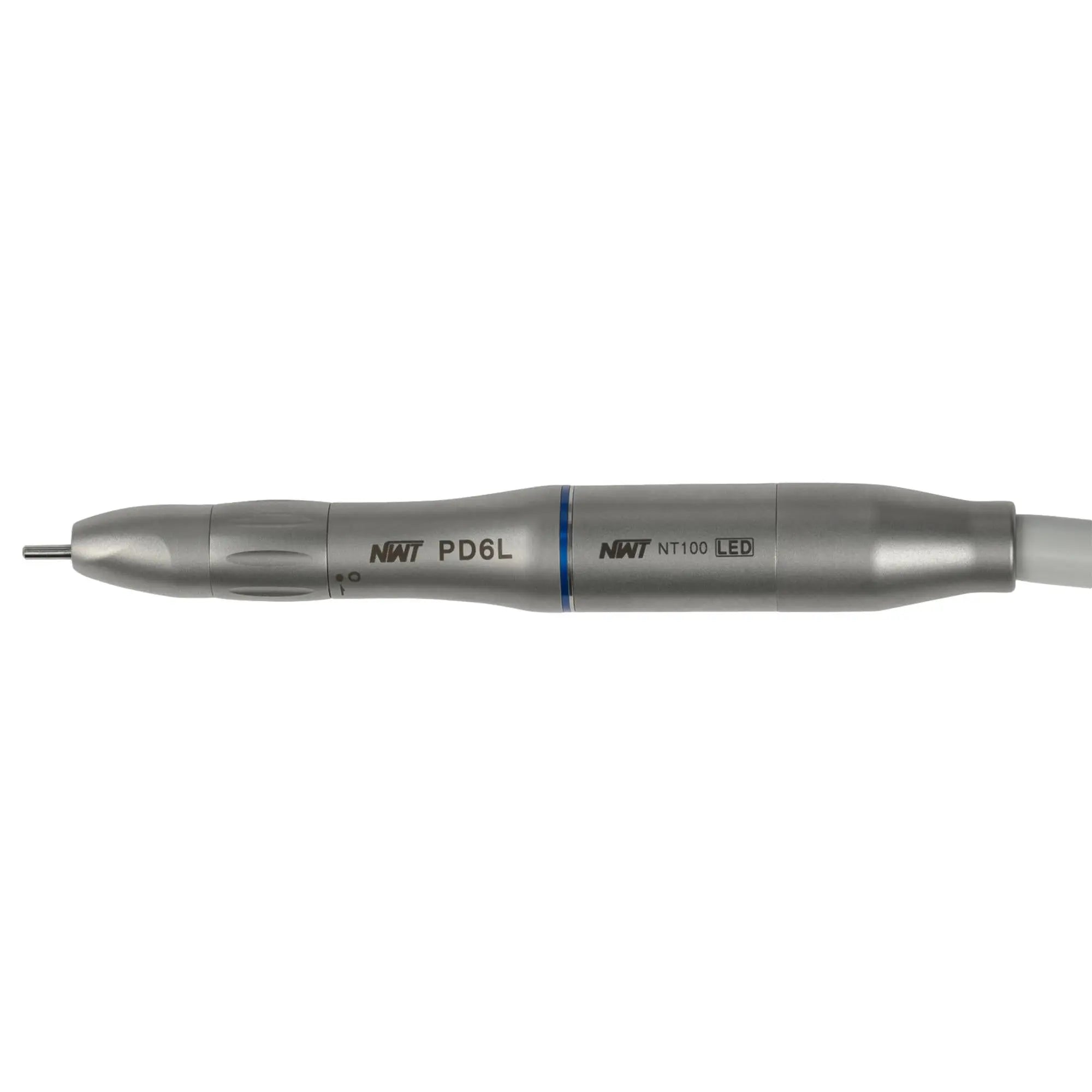

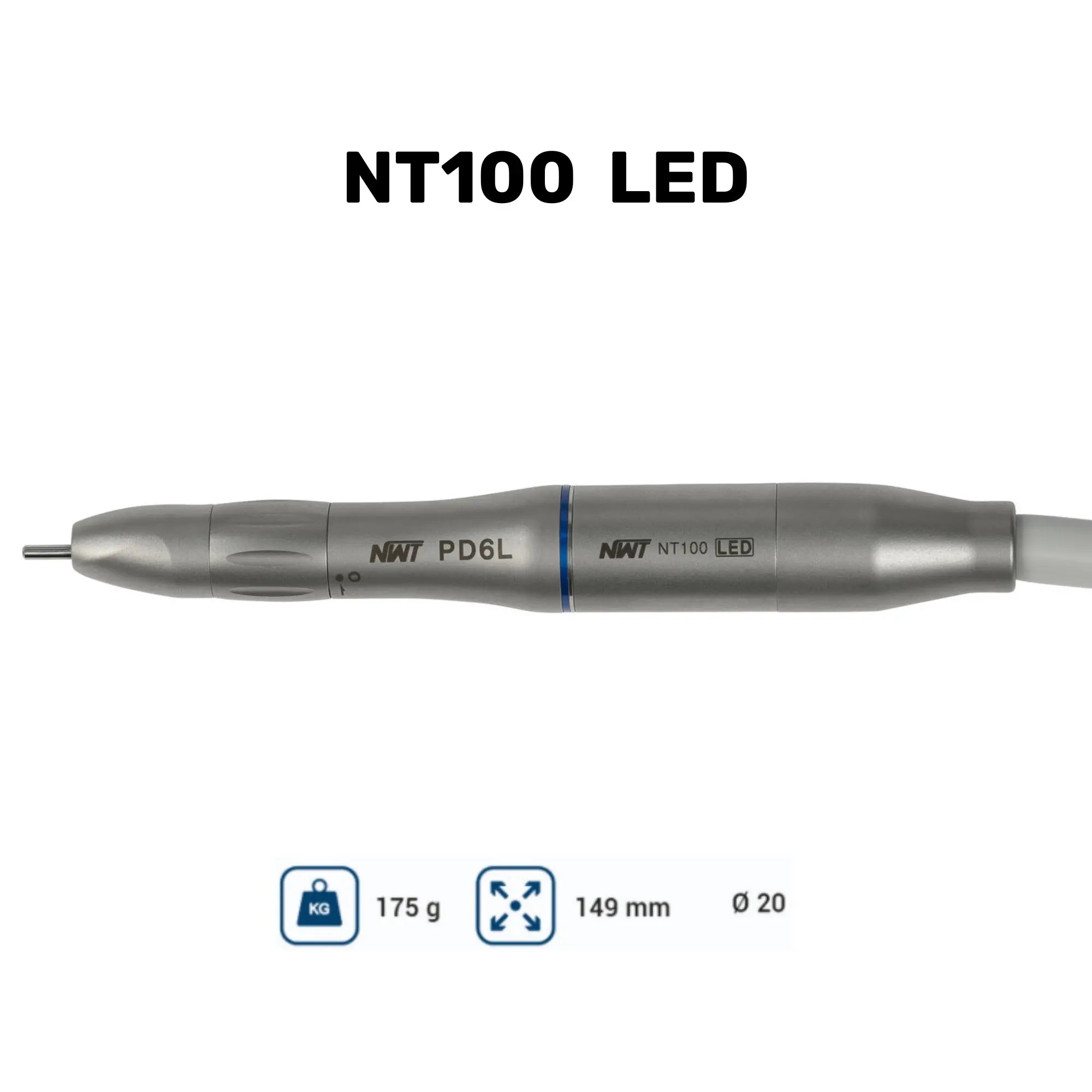

• N T100 optic LED + PDV 40 PLUS

- Engine speeds from 4,000 to 40,000 rpm with a powerful torque of 3.4 Ncm
- Removable handpiece for optimal cleaning, disinfection, sterilization processes and maintenance
- LED lighting with 32,000 LUX, natural daylight for better view (only applies to spray handpiece)
- Clamping force increased by approx. 30% allows a wider range of cutters
- Weight 175g
- Size 149mm
- Uniform, vibration-free rotation of the integrated clamping system
- Powerful and stable torque across the entire speed range
- Ergonomic handpiece design for precision
- Lightweight, compact handpiece reduces hand fatigue and improves balance
- Hermetically shielded micromotors with low vibration and low noise
- Unique mechanism for longer life

SUCTION handpiece:

• PDV 40 EVO: NON-autoclavable handpiece

The PDV40 EVO vacuum handpiece is equipped with a quiet, brushless, high-performance micromotor. Its high torque allows the user to work quickly, even at low speed, and it is equipped with an easy clamping system.

- Ergonomic and lightweight to reduce hand fatigue.
- Low vibrations, regular rotation of the integrated clamping system.
- Strong and stable torque across the entire speed range.
- Ergonomic design of the handpiece for greater efficiency and precision.
- Lightweight and compact handpiece reduces hand fatigue and improves balance.
- Hermetic micromotors with low vibration and low noise level.
- Increased clamping force of approximately 30% allows a greater choice of cutters.
- Unique mechanics for longer life
- Engine speed from 5,000 to 40,000 rpm with a powerful torque of 3.4 Ncm

• PDV 40 PLUS : Autoclavable handpiece

The PDV40 PLUS is a removable handpiece that can be cleaned, disinfected and autoclaved. It is resistant to chemicals and high autoclave temperatures.

The new NWT handpieces offer exactly this possibility without any technical restrictions and without any loss of performance.

- Removable handpiece for optimal cleaning, disinfection, sterilization processes and maintenance.
- Low vibrations, regular rotation of the integrated clamping system.
- Strong and stable torque across the entire speed range.
- Ergonomic design of the handpiece for greater precision.
- Lightweight and compact handpiece reduces hand fatigue and improves balance.
- Hermetic micromotors with low vibration and noise levels.
- Increased clamping force of approximately 30% allows a greater choice of cutters.
- Unique mechanics for longer life
- Engine speed from 5,000 to 40,000 rpm with a powerful torque of 3.4 Ncm
